1.7 Writing Proofs

Reminder: Full online book available through
ClassLink > Savvas EasyBridge

Use deductive reasoning to prove geometric theorems about lines and angles

Assignment

Four vocabulary definitions
p56 9–10, 14–18, 19–20*, 21–22, 25 (PDF link)

* For 19–20, do not be discouraged if yours does not match the answer key.

Additional Resources

Now that we’ve looked at deductive reasoning, we’re going to use that look at and construct proofs, which string together a series of deductions to get a conclusion. So, let’s prove something new: the vertical angle theorem.

Vertical Angles Theorem

Vertical angles are congruent.

Figure 1.7.1 In the figure above, $\angle 1 \cong \angle 3$ and $\angle 2 \cong \angle 4$.

It’s one thing to say something, and quite another to prove it. Below is a two-column proof of the vertical angle theorem. Two-column proofs give a series of statements along with reasons why those statements can be made. By the end, those statements should lead to the conclusion that the theorem is true.

Given: $\angle 1$ and $\angle 3$ are vertical angles

Prove: $\angle 1 \cong \angle 3$

Statements	Reasons
1) $\angle 1$ and $\angle 3$ are vertical angles	1) Given
2) $m\angle 1 + m\angle 2 = 180^\circ$ and $m\angle 2 + m\angle 3 = 180^\circ$	2) Supplementary angles
3) $m\angle 1 + m\angle 2 = m\angle 2 + m\angle 3$	3) Transitive property of equality
4) $m\angle 1 = m\angle 3$	4) Subtraction property of equality
5) $\angle 1 \cong \angle3$	5) Definition of congruent angles

The aim of any proof is to have a self-contained set of steps that lead you from what’s given to the conclusion. This means our given (or givens if multiple) is stated first.

After that, the chain of logic begins. The statements themselves might be enough for you, but the reasons are equally important. They refer to already proven facts you can reference if there is any doubt. Number 2 for instance, where $m\angle 1 + m\angle 2 = 180^\circ$, might be a leap of logic depending on the person. Since the reason is given, they can look up supplementary angles and see that the statement works.

The Elephant in the Room

Proofs have a reputation for being difficult, and that comes from what doesn’t show up often in other math classes: justification. Instead of just “do the steps”, proofs introduce you to “justify the steps”, leading to open-ended problems with multiple correct answers. (Just as an example, here is a book with 367 proofs for the Pythagorean theorem. Number 231 is by our 20th president, James A. Garfield.)

Proofs and other open-ended problems represent the hardest problems you’ll face in your life and career. The ones you can’t solve just by looking up the solution. The ones where you’ll have to justify your decision, either to your partner or boss. So when you attempt to solve one of these problems, know that you will struggle. But that’s OK. Get the help you need for whichever part is giving you trouble and keep going.

And since you are probably wondering what this will look like on a test, you won’t be asked to write a full proof. Most of one will be given to you, and then you have to fill in the blanks from a short list of options.

Theorem Bank

Constructing a proof requires you know a lot of theorems. To help you out on the few proofs you have to create for homework, here is a list of proofs to help you out: Properties Cheat Sheet. Along with that, the book introduces a few more.

Congruent Supplements Theorem

If two angles are supplementary to congruent angles, then the two angles are also congruent.

In symbols: If $m\angle 1 + m\angle 2 = 180^\circ$, $m\angle 3 + m\angle 4 = 180^\circ$, and $\angle 2 \cong m\angle 4$, then $m\angle 1 \cong m\angle 3$.

Congruent Complements Theorem

If two angles are complementary to congruent angles, then the two angles are also congruent.

In symbols: If $m\angle 1 + m\angle 2 = 90^\circ$, $m\angle 3 + m\angle 4 = 90^\circ$, and $\angle 2 \cong m\angle 4$, then $m\angle 1 \cong m\angle 3$.

Linear Pairs Theorem

The sum of the measures of a linear pair is $180^\circ$.

In symbols: If $\angle 1$ and $\angle 2$ form a linear pair, then $m\angle 1 + m\angle 2 = 180^\circ$.

One More Proof

One more example proof.

Figure 1.7.2 $m\angle 1 = m\angle 2$ and $m\angle 1 = 105^\circ$

This time, we want to prove $m\angle 3 = 75^\circ$. This time, I’ll walk through the logic in plain language and produce a paragraph proof.

Since the measure of $\angle 1$ is equal to the measure of $\angle 2$, and the measure of $\angle 1 = 105^\circ$, then the measure of $\angle 2$ must also be $105^\circ$.

$\angle 2$ and $\angle 3$ also happen to be a linear pair, so the sum of their measures must be $180^\circ$. So, if $m\angle2=105^\circ$, then $m\angle 3 =75^\circ$.

For comparison, here is the two-column version.

Statements	Reasons
1) $m\angle 1 = m\angle 2$	1) Given
2) $m\angle 1 = 105^\circ$	2) Given
3) $m\angle 1 = m\angle 2$	3) Transitive property of equality
4) $\angle 2$ and $\angle 3$ are a linear pair	4) Def. of a linear pair
5) $m\angle 2 + m\angle 3=180^\circ$	5) Linear pairs theorem
6) $105^\circ + m\angle 3=180^\circ$	6) Substitution property of equality
7) $m\angle 3 = 75^\circ$	7) Subtraction property of equality

Applying Vertical Angles

The last bit in the section is using the vertical angle theorem. This is mostly algebra work since you need to set the expressions equal to each other and solve for $x$.

Example: Applying Vertical Angles

In the figure below, find the measure of the angles by determining the value of $x$.

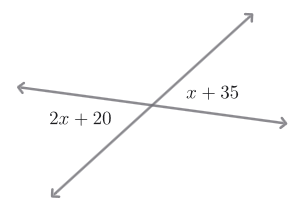

Figure 1.7.3 Vertical angles of unknown measure.

SOLUTION Since we know vertical angles are congruent, we can set the two expressions equal to each other.

\[\begin{align} 2x + 20 = x + 35 \end{align}\]

Now that we have an equation, we can solve for the one variable.

\[\begin{align} 2x + 20 &= x + 35 \\ x + 20 &= 35 \\ x &= 15 \end{align}\]

And now that we know $x$, we can plug it back in to see that our vertical angles measure $50^\circ$.

$\blacksquare$
